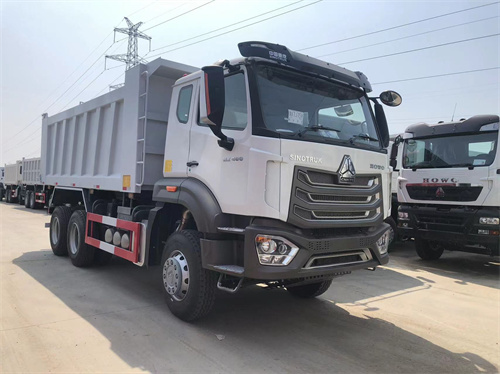

Howo NX dump truck is a new model of Sinotruk dump truck.
Engine is 400hp ,now it is very popular in Philippine market .
Bucket size : 5600x2300x1500mm ,thickness : bottom 8mm,side 6mm .
If you also want this model ,please contact us whatsapp .:008615864031266
Model
ZZ3255N4647A
Driving Form
6X4
Cabin
Engine
Transmission
HW19710, 10F & 2R, with PTO
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
VGD95 , 1x9000 KGS
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake
Service brake: dual circuit compressed air brake
Electrics
Operating voltage: 24 V, negative grounded
Tyres
12.00R20, radial tyres with one spare tyre
Fuel Tank
300L
Cargo Body
5600x2300x1500mm,Floor 8mm, Side 6 mm
Overall Dimension
8500*2550*3450mm
H77L,1 Sleeper ,with AC
400HP
Pressed axle housing, central single reduction with hub reduction
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
